侏催 樫雁 mm 減塞KN 嶷楚 kg

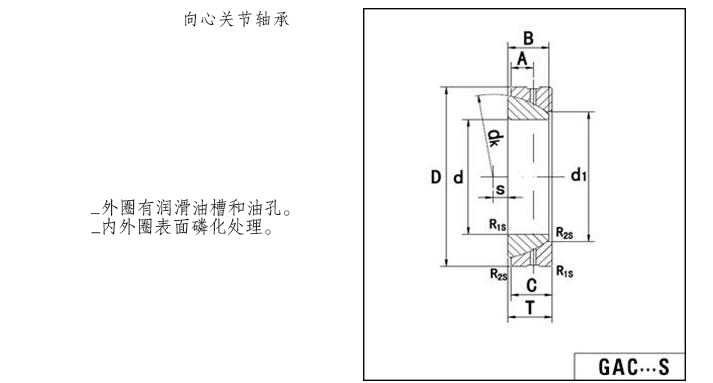

d D T dk d1 B C S A R1s R2s α 強 床




    min min 「 C C0
GAC25S 25 47 15 42.5 31.4 14 14 1 7.5 0.6 0.2 7.5 47.5 236 0.13
GAC28S 28 52 16 47 35.7 15 15 1 8 1 0.3 8 60 300 0.17
GAC30S 30 55 17 50 36.1 16 16 2 8.5 1 0.3 8.5 63 315 0.21
GAC32S 32 58 17 52 37.5 17 16 2 8.5 1 0.3 8.5 71 354 0.24
GAC35S 35 62 18 56 42.4 17 17 2 9 1 0.3 9 76.5 390 0.27
GAC40S 40 68 19 60 46.8 18 18 1.5 9.5 1 0.3 9.5 90 450 0.32
GAC45S 45 75 20 66 52.9 19 19 1.5 10 1 0.3 10 106 530 0.41
GAC50S 50 80 20 74 59.1 19 19 4 10 1 0.3 10 118 585 0.45
GAC55S 55 90 23 80 62 22 22 4 11.5 1.5 0.6 11.5 146 735 1.67
GAC60S 60 95 23 86 68.1 22 22 5 11.5 1.5 0.6 11.5 160 800 0.72
GAC65S 65 100 23 92 75.6 22 22 5 11.5 1.5 0.6 11.5 173 865 0.76
GAC70S 70 110 25 102 82.2 24 24 7 12.5 1.5 0.6 12.5 208 1040 1
GAC75S 75 115 25 107 84.4 25 24 7.9 12.5 1.5 0.6 12.5 220 1129 1.1
GAC80S 80 125 29 115 90.5 27 27 10 14.5 1.5 0.6 14.5 250 1250 1.5
GAC85S 85 130 29 122 94.8 29 26.5 9.4 14.5 1.5 0.6 14.5 284 1422 1.6
GAC90S 90 140 32 130 103.3 30 30 11 16 2 0.6 16 320 1600 2.1
GAC95S 95 145 32 135 104.4 32 29.5 10.8 16 2 0.6 16 335 1750 2.2
GAC100S 100 150 32 140 114.3 30 30 12 16 2 0.6 16 345 1760 2.3
GAC105S 105 160 35 148 113.8 35 32.5 12.3 17.5 2 0.6 17.5 423 2116 2.9
GAC110S 110 170 38 160 125.8 36 36 15 19 2.5 0.6 19 475 2360 3.6
GAC120S 120 180 38 170 135.4 36 36 17 19 2.5 0.6 19 510 2550 3.9
GAC130S 130 200 45 190 148 42 42 20 22.5 2.5 0.6 22.5 640 3200 5.9
GAC140S 140 210 45 200 160.6 42 42 20 22.5 2.5 0.6 22.5 680 3450 6.3
GAC150S 150 225 48 213 170.9 45 45 21 24 3 1 24 780 3900 7.7
GAC160S 160 240 51 225 181.4 48 48 21 25.5 3 1 25.5 900 4500 9.4
GAC170S 170 260 57 250 194.3 54 54 27 28.5 3 1 28.5 1100 5500 12
GAC180S 180 280 64 260 205.5 61 61 21 32 3 1 32 1320 6700 17
GAC190S 190 290 64 275 211.8 61 61 29 32 3 1 32 1370 6950 18
GAC200S 200 310 70 290 229.2 66 66 26 35 3 1 35 1560 7800 22.5
