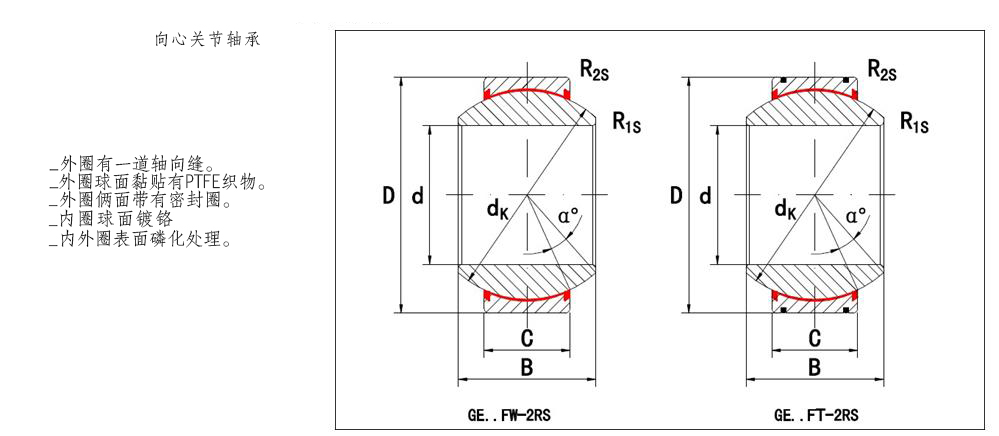

| 型号 | 尺寸 mm | 负荷 KN | 重量 kg | ||||||||
| d | D | B | C | dk | R1s | R2s | α | 动 | 静 | ||
| min | min | ≈ | C | C0 | |||||||
| GE15FW2RS | 15 | 30 | 16 | 10 | 25 | 0.3 | 0.3 | 16 | 22.4 | 56 | 0.046 |
| GE17FW2RS | 17 | 35 | 20 | 12 | 29 | 0.3 | 0.3 | 19 | 31.5 | 78 | 0.078 |
| GE20FW2RS | 20 | 42 | 25 | 16 | 35.5 | 0.6 | 0.6 | 17 | 51 | 127 | 0.15 |
| GE25FW2RS | 25 | 47 | 28 | 18 | 40.7 | 0.6 | 0.6 | 17 | 65.5 | 166 | 0.19 |
| GE30FW2RS | 30 | 55 | 32 | 20 | 47 | 0.6 | 1 | 17 | 210 | 350 | 0.29 |
| GE35FW2RS | 35 | 62 | 35 | 22 | 53 | 0.6 | 1 | 16 | 277 | 462 | 0.39 |
| GE40FW2RS | 40 | 68 | 40 | 25 | 60 | 0.6 | 1 | 17 | 360 | 600 | 0.52 |
| GE45FW2RS | 45 | 75 | 43 | 28 | 66 | 0.6 | 1 | 15 | 442 | 737 | 0.68 |
| GE50FW2RS | 50 | 90 | 56 | 36 | 80 | 0.6 | 1 | 17 | 690 | 1150 | 1.4 |
| GE60FW2RS | 60 | 105 | 63 | 40 | 92 | 1 | 1 | 17 | 885 | 1475 | 2 |
| GE70FW2RS | 70 | 120 | 70 | 45 | 105 | 1 | 1 | 16 | 1125 | 1875 | 2.9 |
| GE80FW2RS | 80 | 130 | 75 | 50 | 115 | 1 | 1 | 14 | 1380 | 2300 | 3.5 |
| GE90FW2RS | 90 | 150 | 85 | 55 | 130 | 1 | 1 | 15 | 1717 | 2862 | 5.4 |
| GE100FW2RS | 100 | 160 | 85 | 55 | 140 | 1 | 1 | 14 | 1845 | 3075 | 6 |
| GE110FW2RS | 110 | 180 | 100 | 70 | 160 | 1 | 1 | 12 | 2685 | 4475 | 9.7 |
| GE120FW2RS | 120 | 210 | 115 | 70 | 180 | 1 | 1 | 16 | 3015 | 5025 | 14 |
| GE140FW2RS | 140 | 230 | 130 | 80 | 200 | 1 | 1 | 16 | 3840 | 6400 | 19 |
| GE160FT2RS | 160 | 260 | 135 | 80 | 225 | 1.1 | 1.1 | 16 | 4320 | 7200 | 24.7 |
| GE180FT2RS | 180 | 290 | 155 | 100 | 250 | 1.1 | 1.1 | 14 | 6000 | 10000 | 35.9 |
| GE200FT2RS | 200 | 320 | 165 | 100 | 275 | 1.1 | 1.1 | 15 | 6600 | 11000 | 45.3 |
| GE220FT2RS | 220 | 340 | 175 | 100 | 300 | 1.1 | 1.1 | 16 | 7200 | 12000 | 51.1 |
| GE240FT2RS | 240 | 370 | 190 | 110 | 325 | 1.1 | 1.1 | 15 | 8550 | 14250 | 65.1 |
| GE260FT2RS | 260 | 400 | 205 | 120 | 350 | 1.1 | 1.1 | 15 | 10050 | 16750 | 82.4 |
| GE280FT2RS | 280 | 430 | 210 | 120 | 375 | 1.1 | 1.1 | 15 | 10800 | 18000 | 97.2 |
