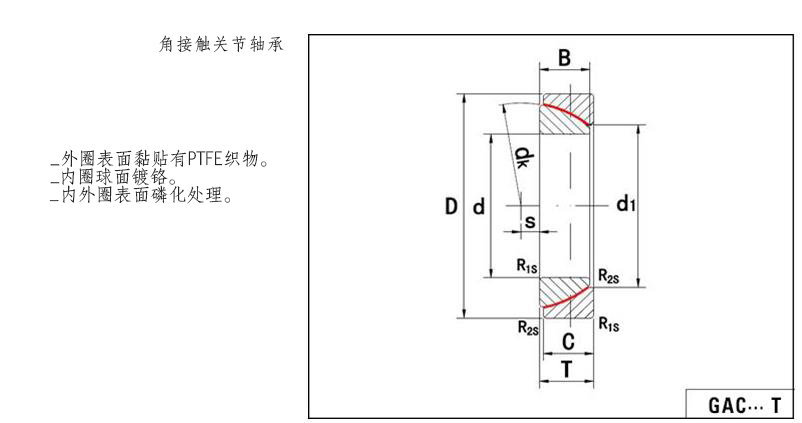

| 型号 | 尺寸 mm | 负荷KN | 重量 kg | ||||||||||
| d | D | T | dk | d1 | B | C | S | R1s | R2s | 动 | 静 | ||
| min | min | C | C0 | ||||||||||
| GAC25T | 25 | 47 | 15 | 42.5 | 31.4 | 14 | 14 | 1 | 0.6 | 0.2 | 71 | 140 | 0.14 |
| GAC28T | 28 | 52 | 16 | 47 | 35.7 | 15 | 15 | 1 | 1 | 0.3 | 90 | 180 | 0.18 |
| GAC30T | 30 | 55 | 17 | 50 | 36.1 | 16 | 16 | 2 | 1 | 0.3 | 95 | 190 | 0.22 |
| GAC32T | 32 | 58 | 17 | 52 | 37.5 | 17 | 16 | 2 | 1 | 0.3 | 102 | 204 | 0.24 |
| GAC35T | 35 | 62 | 18 | 56 | 42.4 | 17 | 17 | 2 | 1 | 0.3 | 116 | 232 | 0.28 |
| GAC40T | 40 | 68 | 19 | 60 | 46.8 | 18 | 18 | 1.5 | 1 | 0.3 | 134 | 270 | 0.34 |
| GAC45T | 45 | 75 | 20 | 66 | 52.9 | 19 | 19 | 1.5 | 1 | 0.3 | 160 | 320 | 0.43 |
| GAC50T | 50 | 80 | 20 | 74 | 59.1 | 19 | 19 | 4 | 1 | 0.3 | 176 | 355 | 0.47 |
| GAC55T | 55 | 90 | 23 | 80 | 62 | 22 | 22 | 4 | 1.5 | 0.6 | 220 | 440 | 0.7 |
| GAC60T | 60 | 95 | 23 | 86 | 68.1 | 22 | 22 | 5 | 1.5 | 0.6 | 240 | 480 | 0.75 |
| GAC65T | 65 | 100 | 23 | 92 | 75.6 | 22 | 22 | 5 | 1.5 | 0.6 | 260 | 520 | 0.8 |
| GAC70T | 70 | 110 | 25 | 102 | 82.2 | 24 | 24 | 7 | 1.5 | 0.6 | 315 | 630 | 1 |
| GAC70T | 75 | 115 | 25 | 107 | 84.4 | 25 | 25 | 7.9 | 1.5 | 0.6 | 345 | 670 | 1.1 |
| GAC80T | 80 | 125 | 29 | 115 | 90.5 | 27 | 27 | 10 | 1.5 | 0.6 | 375 | 750 | 1.6 |
| GAC85T | 85 | 130 | 29 | 122 | 94.8 | 29 | 26.5 | 9.4 | 1.5 | 0.6 | 425 | 810 | 1.7 |
| GAC90T | 90 | 140 | 32 | 130 | 103.3 | 30 | 30 | 11 | 2 | 0.6 | 480 | 965 | 2.2 |
| GAC95T | 95 | 145 | 32 | 135 | 104.4 | 32 | 29.5 | 10.8 | 2 | 0.6 | 500 | 1000 | 2.3 |
| GAC100T | 100 | 150 | 32 | 140 | 114.3 | 30 | 30 | 12 | 2 | 0.6 | 520 | 1040 | 2.4 |
| GAC105T | 105 | 160 | 35 | 148 | 113.8 | 35 | 32.5 | 12.3 | 2 | 2 | 565 | 1250 | 2.9 |
| GAC110T | 110 | 170 | 38 | 160 | 125.8 | 36 | 36 | 15 | 2.5 | 0.6 | 710 | 1430 | 3.7 |
| GAC120T | 120 | 180 | 38 | 170 | 135.4 | 36 | 36 | 17 | 2.5 | 0.6 | 765 | 1530 | 4 |
| GAC130T | 130 | 200 | 45 | 190 | 148 | 42 | 42 | 20 | 2.5 | 0.6 | 965 | 1930 | 6 |
| GAC140T | 140 | 210 | 45 | 200 | 160.6 | 42 | 42 | 20 | 2.5 | 0.6 | 1020 | 2040 | 6.4 |
| GAC150T | 150 | 225 | 48 | 213 | 170.9 | 45 | 45 | 21 | 3 | 1 | 1180 | 2360 | 7.9 |
| GAC160T | 160 | 240 | 51 | 225 | 181.4 | 48 | 48 | 21 | 3 | 1 | 1340 | 2700 | 9.6 |
| GAC170T | 170 | 260 | 57 | 250 | 194.3 | 54 | 54 | 27 | 3 | 1 | 1660 | 3350 | 13 |
| GAC180T | 180 | 280 | 65 | 260 | 205.5 | 61 | 61 | 21 | 3 | 1 | 2000 | 4000 | 17.5 |
| GAC190T | 190 | 290 | 64 | 275 | 211.8 | 61 | 61 | 29 | 3 | 1 | 2080 | 4150 | 18 |
| GAC200T | 200 | 310 | 70 | 290 | 229.2 | 66 | 66 | 26 | 3 | 1 | 2360 | 4750 | 23 |
