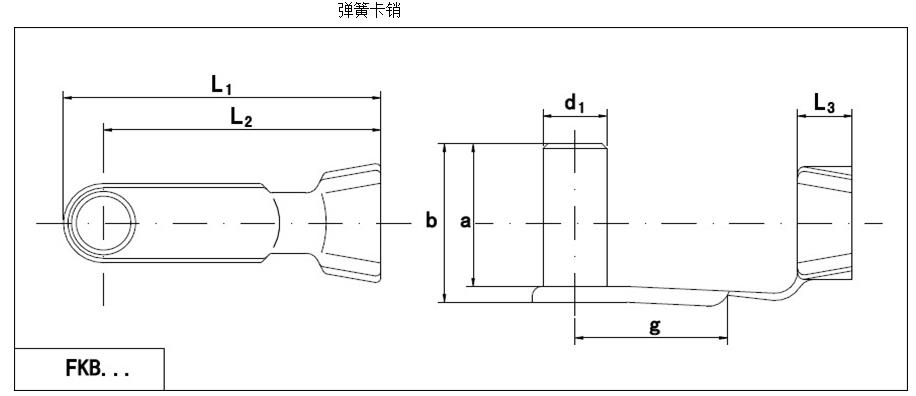

| 型号 | 适用U型件 | 尺寸 mm | 重量 kg | ||||||
| d1 | g | a | b | L1 | L2 | L3 | |||
| h11 | ≈ | ≈ | ≈ | ||||||
| FKB4x8 | G4x8 | 4 | 8 | 9.5 | 11 | 19 | 15 | 4.5 | 0.0015 |
| FKB5x10 | G5x10 | 5 | 10 | 12 | 13.5 | 23 | 19 | 5.5 | 0.0025 |
| FKB5x20 | G5x20 | 5 | 20 | 12 | 13.5 | 33 | 29 | 5.5 | 0.0031 |
| FKB6x12 | G6x12 | 6 | 12 | 14 | 16 | 28 | 23 | 6.5 | 0.0046 |
| FKB6x24 | G6x24 | 6 | 24 | 14 | 16 | 40 | 35 | 6.5 | 0.0052 |
| FKB8x16 | G8x16 | 8 | 16 | 19 | 21.5 | 37 | 30 | 8 | 0.0106 |
| FKB8x32 | G8x32 | 8 | 32 | 19 | 21.5 | 52 | 46 | 8 | 0.0116 |
| FKB10x20 | G10x20 | 10 | 20 | 23 | 26 | 46 | 38 | 10 | 0.0194 |
| FKB10x40 | G10x40 | 10 | 40 | 23 | 26 | 66 | 58 | 10 | 0.0205 |
| FKB12x24 | G12x24 | 12 | 24 | 28 | 31 | 53 | 45 | 12 | 0.0331 |
| FKB12x48 | G12x48 | 12 | 48 | 28 | 31 | 78 | 69 | 12 | 0.035 |
| FKB14x28 | G14x28 | 14 | 28 | 31 | 34 | 62 | 52 | 14 | 0.0472 |
| FKB14x56 | G14x56 | 14 | 56 | 31 | 34 | 92 | 82 | 14 | 0.0508 |
| FKB16x32 | G16x32 | 16 | 32 | 36 | 39 | 73 | 62 | 16 | 0.0694 |
| FKB16x64 | G16x64 | 16 | 64 | 36 | 39 | 103 | 92 | 16 | 0.0744 |
| FKB20x40 | G20x40 | 20 | 40 | 45 | 50 | 87.5 | 71.5 | 16 | 0.13 |
